How to Choose GaN RF PA Modules Beyond the GaN Label

GaN RF PA Modules may appear suitable because their datasheets list the required frequency range and nominal output class. However, that only establishes an initial product match.

Modules with the same GaN label and wattage can still have different RF input requirements, gain behavior, thermal limits, protection responses, configurations, and test evidence. A module that reaches the target output during a short bench test may also provide less usable margin after heat builds, the PA-terminal voltage changes, or the installed RF path is connected.

The GaN label identifies the transistor technology used in the RF power stage. It does not confirm how the complete module will behave under the project’s actual RF, DC, thermal, load, and operating conditions.

The practical selection question is therefore:

Can the complete GaN RF PA module maintain the required performance under the conditions the system will actually create?

1. What Does the GaN Label Actually Prove?

GaN identifies the semiconductor technology used in the RF power stage.

It can support high-frequency and high-power RF designs. However, bandwidth, duty-cycle capability, module size, thermal behavior, and continuous operating performance still depend on the complete amplifier architecture.

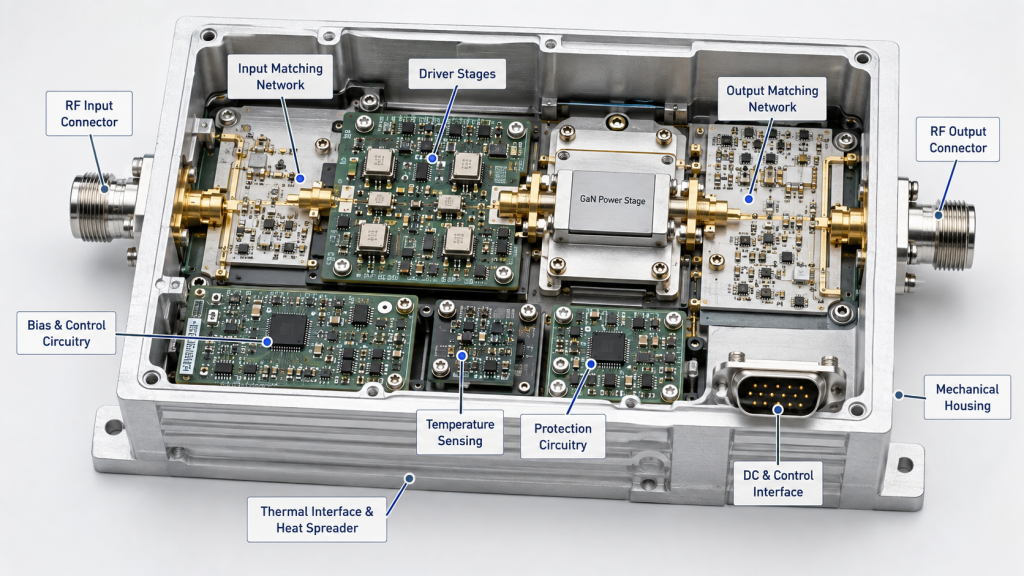

A finished GaN RF PA module also includes:

• input and output matching networks;
• driver stages;
• bias and control circuits;
• thermal interfaces;
• protection logic;
• RF and DC connectors;
• mechanical construction;
• controlled production configuration.

These elements determine how the finished module behaves at the required frequencies and operating conditions.

What the GaN Label Identifies—and What the Module Must Still Prove

What the GaN Label Identifies	What the Finished Module Must Still Prove
Semiconductor technology used in the RF power stage	Controlled device and module configuration
High-frequency device potential	Gain and usable output at the required frequency points
High power-density potential	Thermal behavior under the defined operating duty
High-voltage device potential	Bias, load, and protection behavior inside the finished module
The transistor technology alone does not define the complete PA	Repeatable RF, DC, thermal, and unit-level test evidence

Two modules can therefore use GaN and carry the same nominal output rating while behaving differently because of their matching, driver, bias, thermal, protection, and mechanical designs.

The technology label begins the comparison. It does not complete it.

2. Which Operating Conditions Decide Whether a GaN RF PA Fits?

A useful comparison should connect the module specification to the conditions that will exist in the completed RF system.

Required Frequency and Usable Output

Start with the frequencies the system will actually use.

Record:

• the lowest and highest required frequencies;
• priority operating points;
• points close to a band edge;
• separate operating windows;
• frequencies with different output targets.

The overall datasheet range does not show whether the same output margin is available at every required point.

The output target should also identify its reference plane. It may apply at:

• the PA output connector;
• the output of a filter or RF switch;
• the end of a feeder cable;
• the antenna input.

Filters, switches, couplers, connectors, and cables introduce loss. A 100 W requirement at the antenna input is therefore not the same as a 100 W requirement at the PA output connector.

Actual RF Input and 28 V Supply

The signal-source or SDR setting does not always equal the RF power reaching the PA input connector.

Input cables, connectors, filters, switches, splitters, adapters, and driver stages can change the actual Pin reaching the PA. Their combined loss may also vary with frequency.

Output and gain margin should therefore be reviewed using actual Pin at the PA input reference plane.

The DC review should cover:

• supply voltage and current capability;
• cable, connector, and distribution loss;
• PA-terminal voltage under load;
• shared-supply and switching conditions.

A nominal 28 V source does not prove that the module receives the same voltage while producing RF output.

Duty Cycle, Cooling, and Installed RF Path

GaN power density does not remove the need for a defined thermal path.

The project should identify whether operation is intermittent, pulsed, high duty, continuous, or controlled by a defined switching sequence.

Cooling may depend on:

• an external heat sink;
• forced airflow;
• a cold plate;
• cabinet airflow;
• ambient temperature;
• installation orientation;
• thermal-interface quality.

Cold-state output may not represent stabilized operation. When sustained RF output is required, the selected module should be compared after it reaches the relevant thermal condition.

The installed RF path can also change delivered output, reflected power, current, case temperature, and protection behavior.

A 50 Ω dummy load provides a controlled module baseline. Filters, switches, feeder cables, connectors, and antennas create a separate installed condition. Both checks may be necessary, but they do not prove the same thing.

A Practical Comparison Example

Two 100 W GaN modules may both list the required frequency.

One may need more RF input power at the project-critical point. The other may reach the target at the PA connector during a short cold-state test, yet provide less antenna-end margin after thermal stabilization and downstream RF-path loss are included.

The correct choice therefore depends on the complete operating boundary—not only on the shared GaN label or nominal wattage.

3. How Should Available GaN RF PA Families Be Compared?

The product block below groups the available GaN RF PA modules by frequency range and power class.

Begin with the project’s required operating points, then use the corresponding datasheet to compare the stated RF input, output, DC, mechanical, and test conditions.

A matching frequency range and nominal wattage provide an initial product reference. They do not by themselves confirm usable output under the project’s actual RF input, 28 V supply, duty cycle, cooling, thermal state, and installed RF-path conditions.

The wideband RF power amplifier module range provides the corresponding product pages and datasheets for these frequency families.

What Can the Datasheet Confirm at the Initial Stage?

A datasheet may provide:

• listed frequency coverage;
• nominal output class;
• gain information;
• DC supply requirements;
• mechanical dimensions;
• connector and control details;
• stated test conditions.

Datasheet values may be typical rather than guaranteed, and the reported results may apply only to selected frequencies or one defined operating condition.

When reviewing a possible module, note:

• the model or datasheet name;
• the tested frequency points;
• the stated RF input condition;
• the output reference plane;
• the load and cooling condition;
• any value described as typical;
• any condition that remains project-defined.

This separates an initial product match from the conditions that still require engineering confirmation.

The broader wideband RF PA selection review explains how to compare the available frequency families and power classes in more detail.

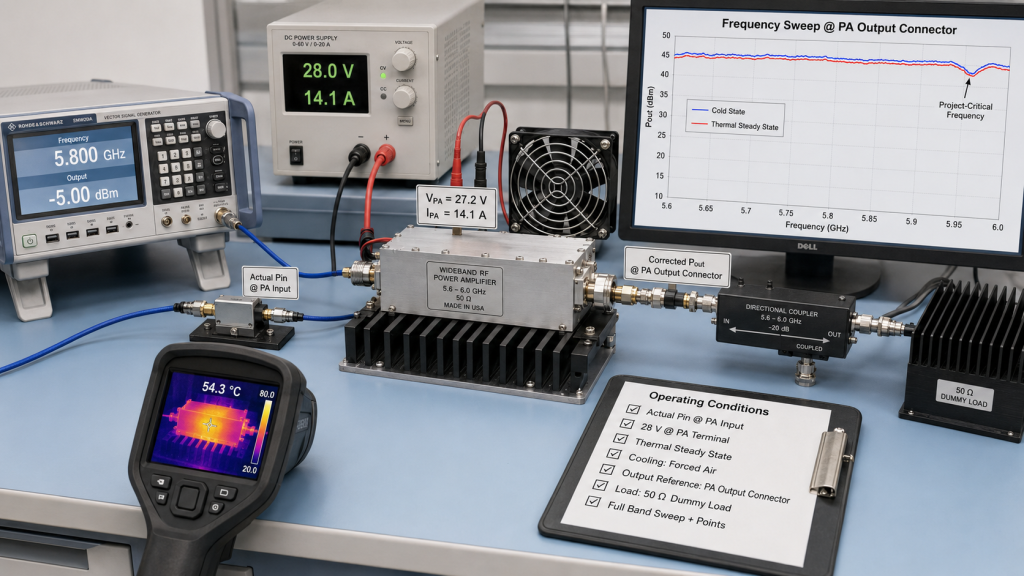

4. What Evidence Should Confirm the Selected Module?

The GaN label and typical datasheet values do not replace evidence from the finished module.

Once a likely frequency family and power class have been identified, confirmation should connect the selected module to:

• the required frequency points;
• actual Pin at the PA input;
• corrected PA-port output;
• PA-terminal voltage and current;
• the relevant thermal state;
• the defined load and cooling condition;
• protection status where required;
• module identity and configuration.

A full-band sweep can show the overall response. Detailed measurements at project-critical points can then confirm the operating conditions that matter most.

What a Broadband RF Power Amplifier Must Prove Across the Band explains why catalog frequency coverage and project-level output evidence are not the same.

Define the Input and Output Reference Planes

The evidence should identify where the input and output values are referenced.

It should state whether Pin is measured at the signal source or at the PA input connector and whether input-path loss has been corrected.

Pout should also identify whether it applies at the PA output connector or farther downstream, together with any cable, connector, attenuator, or coupler correction.

Without defined reference planes, two apparently similar results may not represent the same operating condition.

Identify the Thermal Condition

The report should distinguish between:

• a cold-state result;
• warm-up data;
• stabilized operation;
• behavior near a protection boundary;
• any post-protection recovery result.

This prevents a short cold-state measurement from being interpreted as evidence for sustained operation.

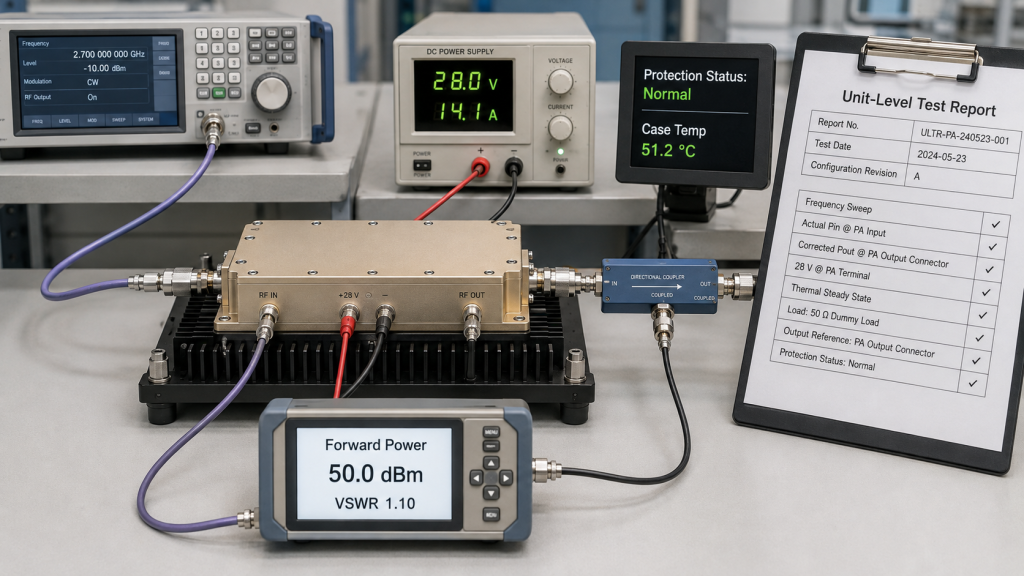

Separate Module Performance From Production Control

Module-level RF output data does not prove device identity, lot control, controlled substitution, assembly consistency, or batch repeatability.

Those items belong to a separate production-control review.

The GaN device quality and production-control evidence becomes relevant when the project requires verification beyond the finished module’s RF output results.

5. Does the Requirement Fit a Standard Module or Need Further Review?

A standard module is a practical starting point when:

• the required frequencies fit one listed range;
• a listed power class is close to the output target;
• the available RF input power is compatible;
• the 28 V supply boundary is suitable;
• the mechanical and cooling conditions can be supported;
• the standard connectors and control interface are acceptable.

Further review becomes relevant when the required frequency, output, input-drive, mechanical, interface, thermal, or reporting boundary does not align clearly with a listed standard option.

The initial comparison should lead to one of three routes:

1. an existing standard module;
2. a standard module with a limited project-specific adjustment;
3. a custom feasibility review.

Not every project condition must be finalized before the first comparison. Confirmed requirements can be separated from project-defined items and clarified as the system boundary becomes more complete.

What Should a GaN RF PA RFQ Define?

Initial Information

Begin with:

• required frequency range or priority points;
• approximate PA-port or antenna-end output target;
• available RF input power;
• 28 V supply condition;
• expected operating duty;
• cooling method.

A frequency range, approximate output target, and available RF input power are enough for an initial technical comparison.

Add When Available

Additional information may include:

• filters, switches, cables, and antenna-path components;
• connector and control-interface requirements;
• mechanical or installation limits;
• environmental conditions;
• test and reporting scope.

Undecided conditions can remain project-defined until the relevant RF, DC, thermal, mechanical, or reporting boundary is clarified.

Before choosing a GaN option, confirm the broader RF PA selection conditions, including signal type, output definition, reference plane, control requirements, and approval evidence.

6. GaN RF PA Module FAQs

Does a GaN RF PA Module Automatically Provide Higher Usable Output?

No.

GaN can support high-power RF designs, but usable output still depends on the operating frequency, actual RF input power, gain, supply condition, thermal state, cooling, load, and output reference plane.

The finished module must be evaluated under the conditions that apply to the project.

Can Two GaN RF PA Modules With the Same Wattage Perform Differently?

Yes.

They may require different Pin, use different input/output matching and driver-stage designs, or behave differently after thermal stabilization. Supply loss, RF-path loss, load mismatch, cooling, and protection settings can also change the usable result.

The shared GaN label and nominal wattage do not make the complete modules equivalent.

Can Selection Begin Before Every Parameter Is Finalized?

Yes.

Begin with the known frequency points, approximate output target, and available RF input power. Supply, duty-cycle, cooling, RF-path, interface, and reporting conditions can be added as they are defined.

Conclusion

A GaN RF power amplifier module should not be selected by semiconductor technology, catalog frequency range, or nominal wattage alone.

The GaN label identifies the transistor platform. The final choice should connect the required operating points and usable output to the actual RF input, PA-terminal supply, thermal state, installed RF path, protection behavior, and module-level evidence.

For a GaN RF PA module review, send RF SKYPOWER the required frequency range or priority points, approximate PA-port or antenna-end output, and available RF input power. Other project conditions can be added as they are defined.

The initial review can then identify the closest standard module, determine whether a limited project-specific adjustment is appropriate, or define the scope of a custom feasibility review.
