High-Heat Ops
★★★★★
“
"RF-SkyPower's thermal management significantly improved our system's uptime in Middle East deployments exceeding 55°C."
+40%Uptime
ZeroDrift
The Strategic Source of C-UAS RF Power
Drone Defense RF Module Production Base
Focused on the R&D and manufacturing of high-performance drone detection and neutralization modules. As a direct source factory, we eliminate middleman risks and ensure mission-critical reliability.
Bypass trading entities. Secure your strategic RF supply from the origin.
Explore Factory Capabilities
Quantifiable Industrial Scale
We provide the massive production capacity and precision testing standards required for sovereign-grade defense projects. As a genuine manufacturing base, we eliminate all trading risks through transparent industrial data and direct factory-level accountability.
50,000㎡+
Industrial Production Base
500+
Engineers & Staff
200,000+
Annual Module Capacity
30 Yrs
Expertise
The Vertical Advantage
30+ Years Experience
Why Choose A Source Factory?
When R&D, manufacturing, and testing happen under one roof, you get unmatched quality control and supply chain stability.
EVERYTHING UNDER ONE ROOF
Unlike trading companies or assemblers who rely on third-party suppliers, we control every aspect of production. This means when you pass testing with our samples, you'll get identical performance in production — guaranteed.
"By machining our own CNC enclosures in-house, we guarantee optimal heat dissipation and mechanical precision for every GaN module."
CNC Machining Center
Custom enclosures with optimized RF shielding manufactured to your exact specifications.
In-House CNC Manufacturing
"From bare board to finished module, complete control over the surface-mount process ensures absolute signal integrity and consistency."

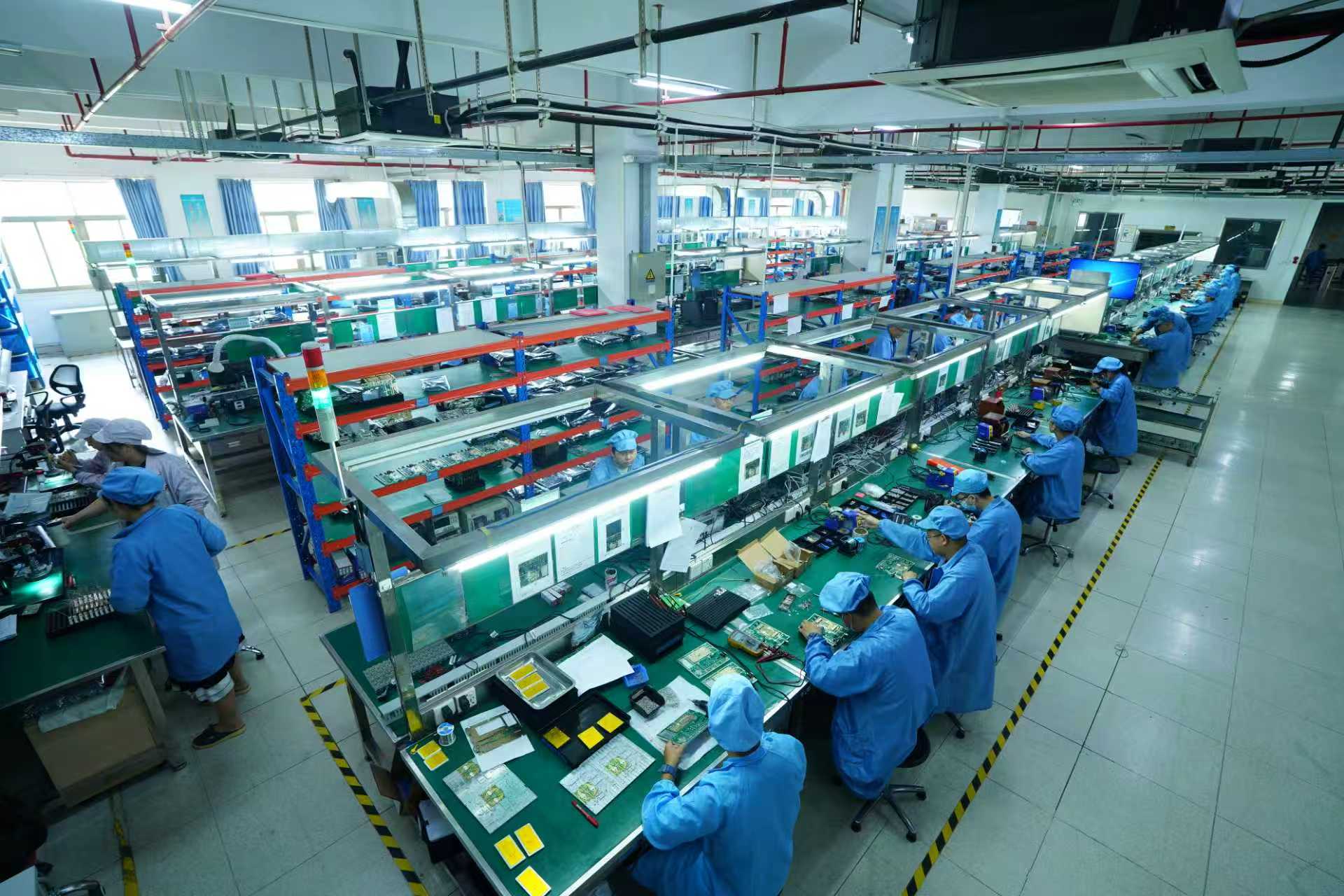

In-House SMT Lines
Precision surface-mount assembly with 0.01mm placement accuracy ensures consistent electrical performance.
Automated Integration Line
"Subjecting every unit to rigorous burn-in and MIL-STD vibration profiles ensures absolute reliability and zero battlefield failures."
R&D Lab On-Site
Design engineers and production team collaborate daily, enabling rapid iteration and issue resolution.
Quality Assurance Lab
"We provide fully customizable packaging solutions, utilizing precision-cut EPE foam and reinforced cartons."
Custom Protective Packing
Every shipment is secured with custom-designed EPE foam inserts to guarantee zero transit damage.
Global Logistics & Shipping
"Battlefield-Ready" R&D Lab
We simulate the world's harshest combat environments to ensure our modules maintain zero-fail stability during critical missions.
CLIMATIC
-40°C to +85°C ESS
Rigorous Environmental Stress Screening ensures reliability from desert heat to arctic cold.

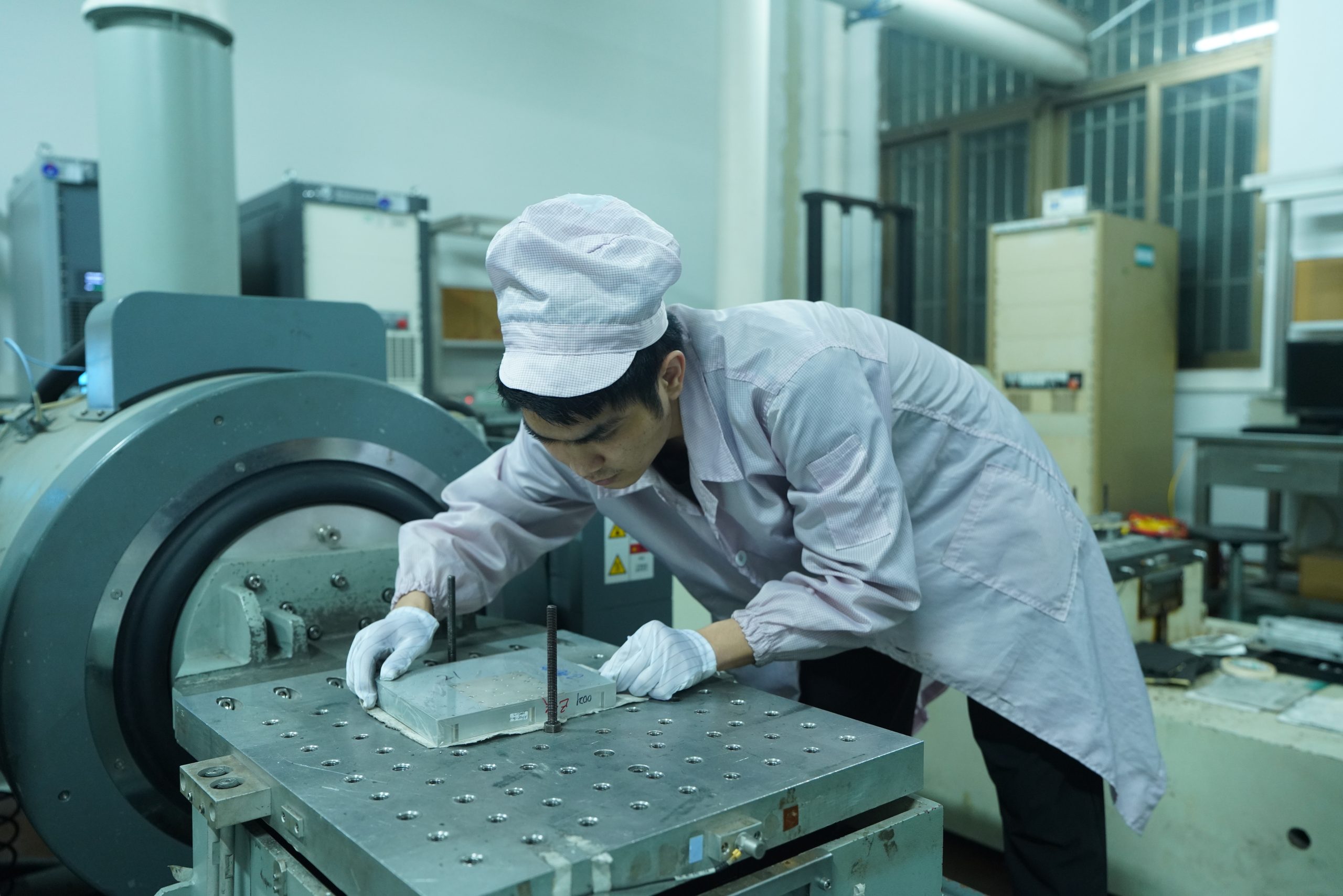

STRUCTURAL
High-G Vibration
Simulating airborne and vehicle-mounted shock scenarios for ruggedized field deployments.
COMPLIANCE
EMC/EMI Chamber
Electromagnetic Compatibility testing ensures zero interference with friendly tactical systems.
RF Transparency: Buyer's Guide
In a market saturated with trading variants, identifying a true source factory is vital for your project's longevity.
✕ Trading-House Variants
- • Refurbished PAs with unstable power drift.
- • Lack of genuine protocol decoding depth.
- • Inadequate thermal protection for field use.

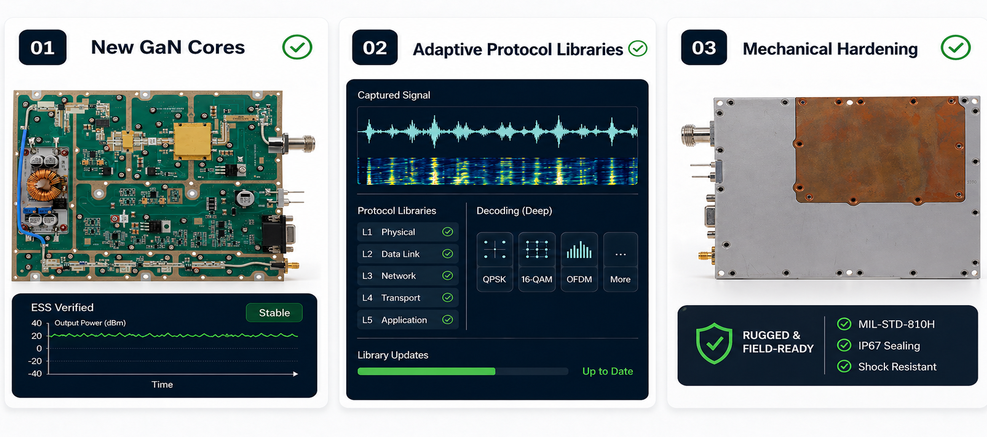

✓ RF-SkyPower Factory Origin
- • New GaN cores with verified ESS data.
- • SDR-based adaptive protocol libraries.
- • Ruggedized mechanical hardening standards.

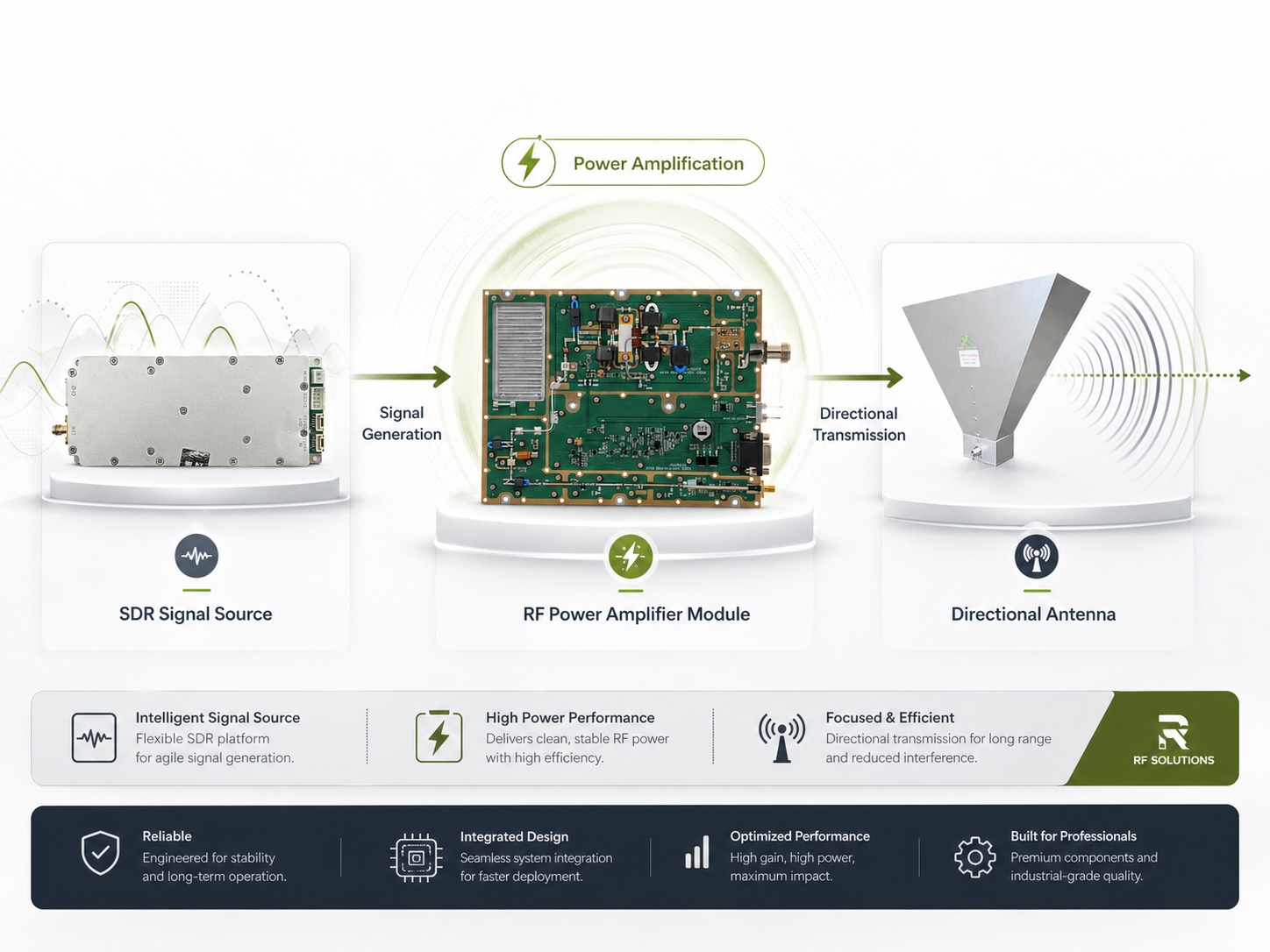

Core Technology Matrix
We possess the full technology stack from hardware layers to signal protocol decoding, proving our status as the true technology source.
L1 HARDWARE LAYER
GaN Front-End
- Ultra-wideband GaN Power Amplifiers
- High-efficiency SiC thermal management
- High power density for compact payloads
L2 PROTOCOL LAYER
SDR Architecture
- Dual-PHY Software Defined Radio
- Proprietary protocol decoding library
- Real-time wideband signal processing
L3 APPLICATION LAYER
Intelligent Algorithms
- Anti-interference frequency hopping
- Omni/Directional coverage logic
- Adaptive power allocation control
30MHz - 6GHz
Full Band Mastery
Our vertical R&D capability ensures that our modules cover the widest possible spectrum with extreme spectral purity. By controlling the underlying software architecture, we offer rapid response to evolving drone frequency threats that generic traders cannot match.
Empower your defense system with source-level R&D.
Request Detailed Specifications
IN-STOCK DEFENSE ECOSYSTEM
Deploy military-grade signal dominance with our fully-validated inventory. Select a category to reveal deep-tech data.
30W-50W
Power Modules
Optimized efficiency core utilizing 3rd Gen GaN technology for tactical mobile platforms.
- 3rd Generation GaN Integration
- 200MHz Instantaneous Bandwidth
- 1μs - 10μs Ultra-Fast Switching

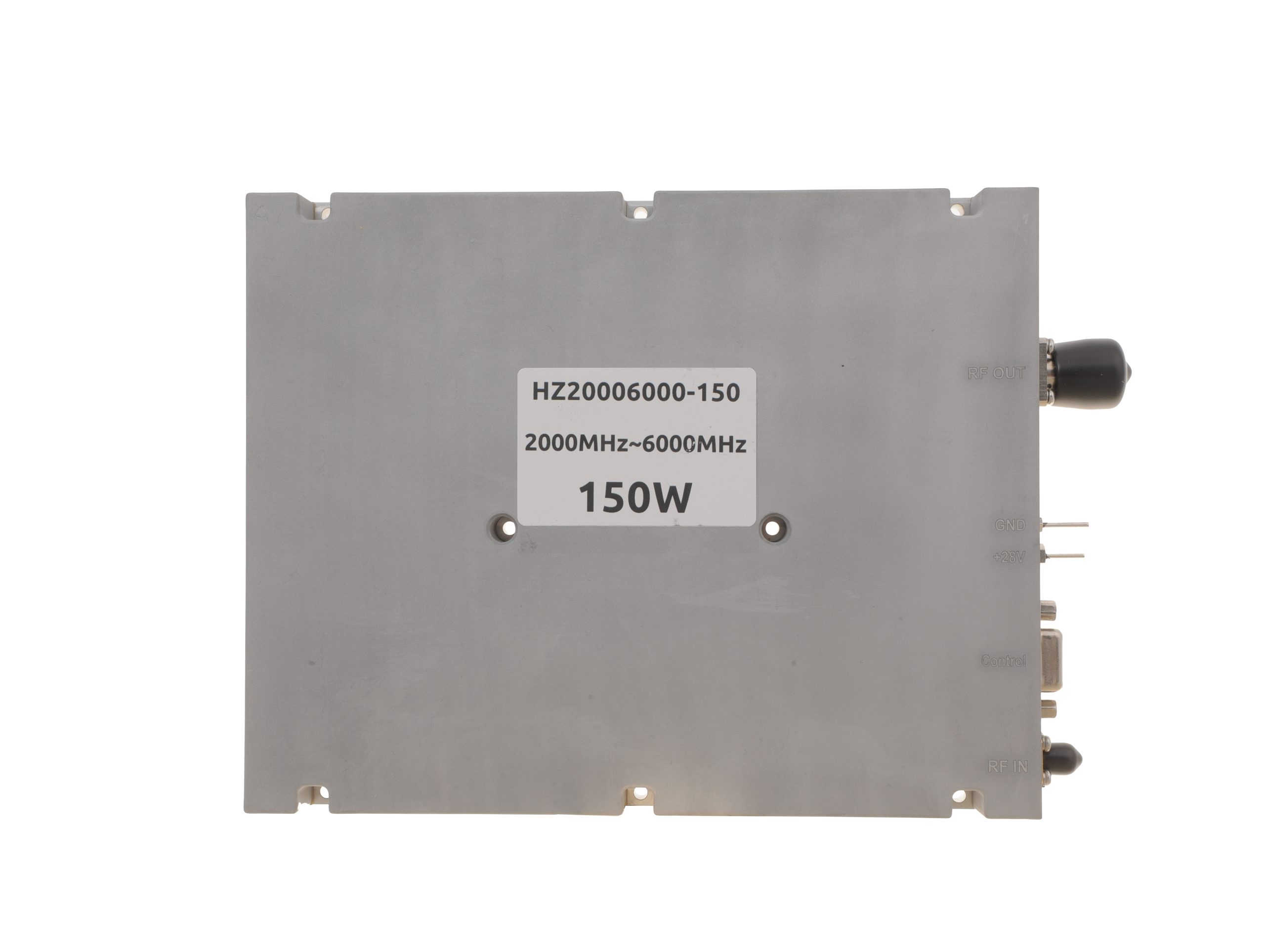

100W-200W
Power Modules
Industrial-grade thrust amplifiers designed for persistent national infrastructure protection.
- 200W min. Continuous Psat Output
- VSWR & Thermal Locked Logic
- MIL-STD-810F Reliability Hardened
SDR
Intelligence
Digital signal brain capable of deep protocol surgery, spectrum mapping and agility.
- Dual-PHY 200MHz Aggregation
- Full O3/O4/Lightbridge Reconstruction
- Real-time Waveform Agility Source
ANT
Arrays
High-gain surgical radiation focus and all-band omni-sensing for situational dominance.
- Ultra-Low VSWR < 1.5 Patterning
- 18dBi High-Efficiency Directional
- 380-6000MHz Multi-Band Shield
TAC
Systems
Integrated high-precision single-soldier identification and tactical field unit.
- Detect at least 12 drones simultaneously
- Sub-Meter Directional Localization
- FPV Real-time Live stream Analysis
30-512 MHz
30 WattsInst. BW200 MHz
VSWR≤1.8
Enable10 μs
Weight0.5 kg
Size(mm)125x59x21.5
30-512 MHz
50 WattsInst. BW200 MHz
VSWR≤1.8
Enable10 μs
Weight0.5 kg
Size(mm)125x59x21.5
300-1700 MHz
30 WattsInst. BW200 MHz
VSWR≤1.8
Enable10 μs
Weight0.5 kg
Size(mm)125x59x21.5
300-1700 MHz
50 WattsInst. BW200 MHz
VSWR≤1.8
Enable10 μs
Weight0.5 kg
Size(mm)125x59x21.5
2.0-6.0 GHz
30 WattsInst. BW200 MHz
VSWR≤1.8
Enable1 μs
Weight0.5 kg
Size(mm)125x59x21.5
2.0-6.0 GHz
50 WattsInst. BW200 MHz
VSWR≤1.8
Enable1 μs
Weight1.4 kg
Size(mm)200x158x25
HZSDR1006000-A01
Dual-PHY Intelligence Core15+ Core Protocols (Continuous OTA Updates)
Frequency100-6000 MHz
Inst. BW200 MHz (Agg.)
ArchitectureSDR / Dual-PHY
Module Size140 x 60 x 14 mm
CONSUMER:
DJI O3/O4/LB/Web, Autel, Hubsan
PRO/FPV:
ELRS (Full Band), TBS (868/915), Flysky
CUSTOM:
FHSS Agility, OFDM Wideband Protocols
GNSS/SAT:
GPS L1/L2, Beidou B1I/B3I, GLONASS
HZS1006000-F1
Frequency Agile GeneratorIntegrated Protocol Stack (Expandable OTA)
Output Pwr>5 dBm (CW)
Gain Adjust35 Levels
Agility BW200 MHz
ControlRS422 Bus / Cascade Ready
MAINSTREAM:
DJI Ocusync, Lightbridge, Syncleas
DENSE FPV:
ELRS 2450A, TBS Crossfire Linking
NAVIGATION:
GPS L1 Spoofing/Jamming Ready
SWEEP:
LFM (5M/10M/40M/70M/100M)
HZA3803000-OD1
Omni Cylinder AntennaFrequency380-3000 MHz
Gain9 dBi (Max)
VSWR< 2.0
Power250 W
Size(mm)90x240 (145 Flange)
HZA4006000-OD1
High-Band Omni AntennaFrequency400-6000 MHz
Gain9 dBi (Max)
VSWR< 2.0
Power250 W
E-Plane BW122.19° (HPBW)
HZA8002600-OD1
Mid-Band Omni AntennaFrequency800-2600 MHz
Gain5.5 dBi
Weight600 g
MaterialNylon/Copper
Size(mm)Ф90x120 (140 Flange)
HZA20006000-DD1
Long-Range Horn ArrayFrequency2.0-6.0 GHz
Gain13.1-19.1 dB
Power100 W Max
Weight~ 2.0 kg
Size(mm)450 x 230 x 415
300-2700 MHz Horn
Ultra-Wideband HornGain16.19 dBi
Efficiency50.8% @ 2.7G
Power250 W
Weight~ 2.5 kg
Size(mm)540 x 300 x 430
400-2700 MHz Horn
Standard Directional HornGain5-10 dBi
VSWR< 2.5
Power100 W
Weight4.0 kg
Size(mm)~ 500 x 390 x 300
2.0-6.0 GHz Horn
Compact Tactical HornGain12-18 dBi
VSWR< 2.0
Power100 W
Weight1.0 kg
Size(mm)~ 225 x 145 x 278
8-Port Tablet Panel
Multi-Band Tactical ShieldMulti-Band400M-5.9G
GainUp to 11 dBi
Power50 W
Weight3.1 kg
Size(mm)390 x 390 x 50
HZ-HD03 Handheld System
Tactical Detection & TrackingCapacityDetect 12+ Drones
AnalyticFPV Live-stream
PrecisionID/SN/Alt/Speed
Weight580 g (Main Unit)
Control6.0" HD Touch Screen
OUR METHODOLOGY
ENGINEERING EXCELLENCE BEHIND THE SOLUTION
From microscopic material audits to full-chain battlefield simulations, our proprietary 46-step process defines the precision limits of RF engineering. Excellence is not just about functionality; it's about absolute control over every micron-level detail.
01
DFM Review & Process Simulation

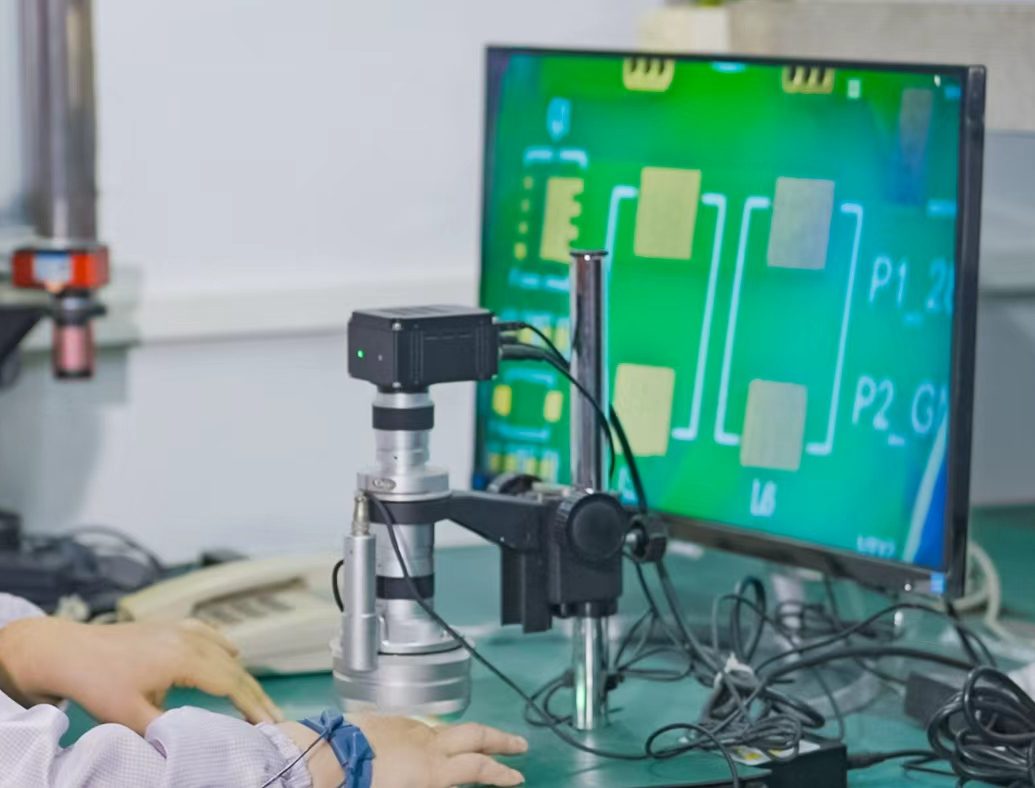

Step 02
PCB Microscopic Material Inspection
Comprehensive inspection of pad flatness and solder mask under 500x magnification to eliminate latent defects.
500x Zoom
Surface Audit

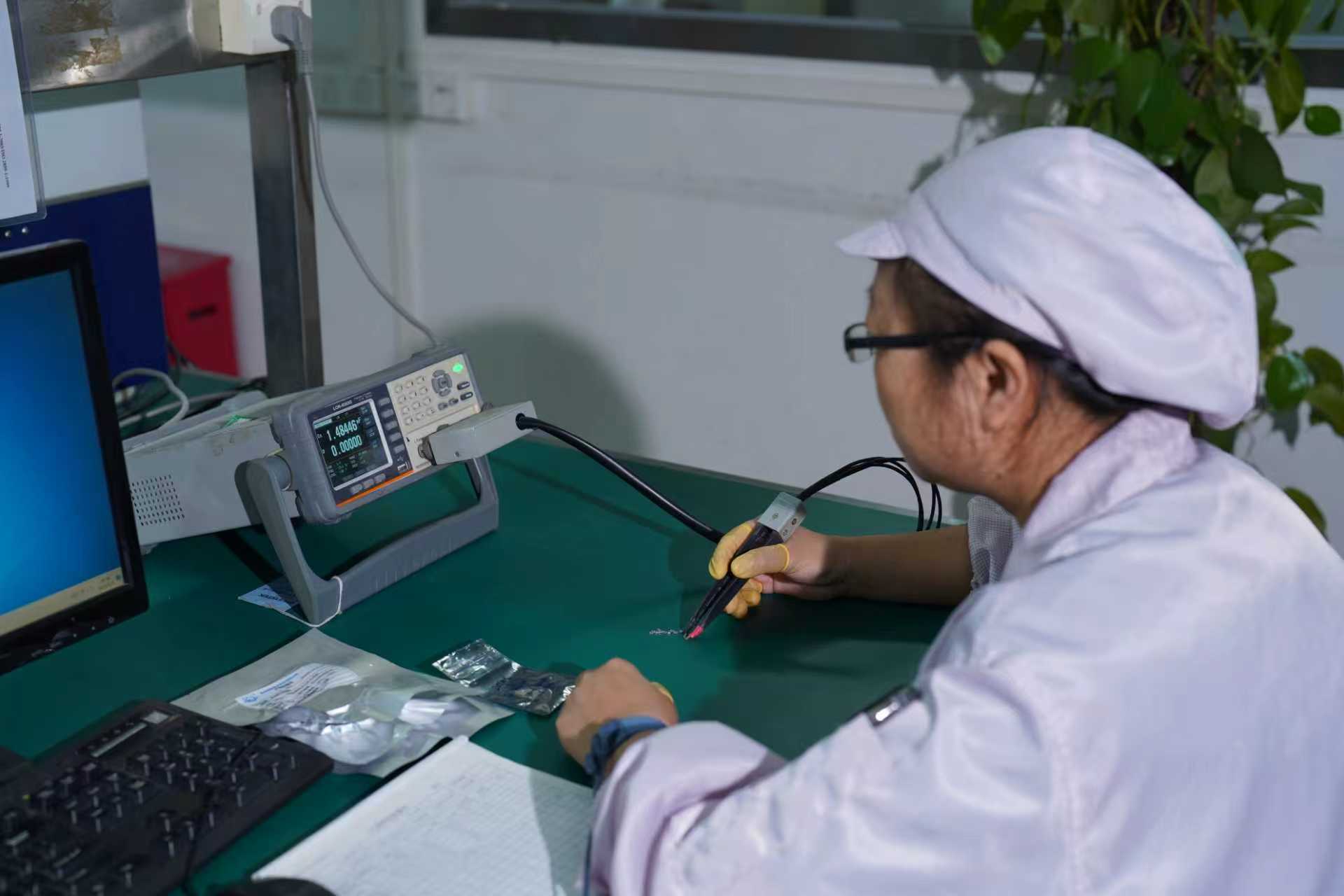

Step 03
Power Tube Selection & Matching
Precise I-V curve sweep and gain matching for power transistors, ensuring gain consistency < 0.1dB.
I-V Sweep
Precision Match
04Structural Component Machining
05Cavity Precision Inspection
06PCB & Component Baking
07Solder Paste Warming & Mixing
08High-Precision Paste Printing
09Post-Printing FAI
10High-Precision SMT Mounting
11Reflow Profile Optimization
12Automatic Optical Inspection (AOI)
Step 13

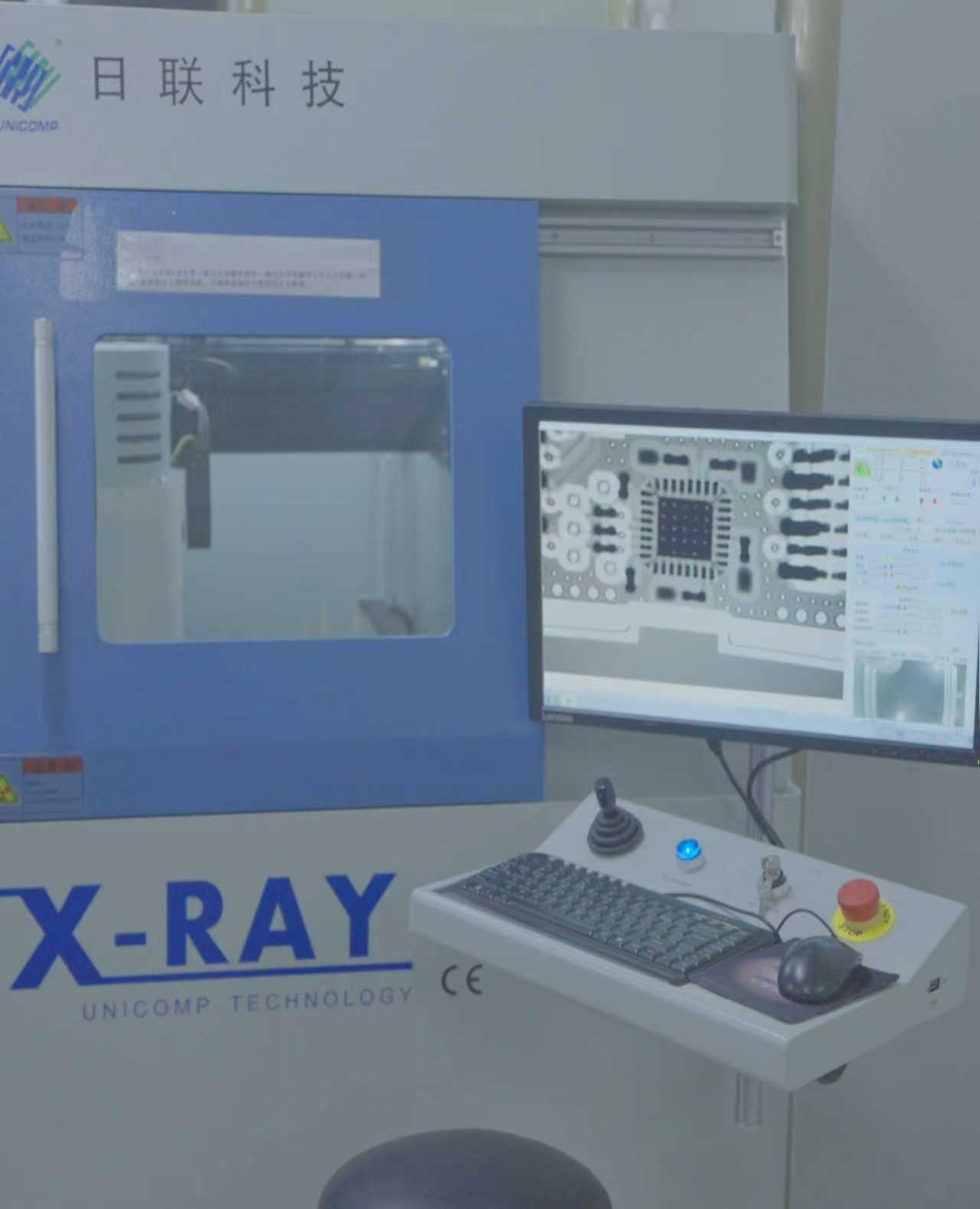

Core QC & X-Ray Analysis
Non-destructive evaluation of BGA/QFN solder joints; internal void rate must be < 2%.
Void < 2%
Structural Integrity
14PCBA Cleaning & Baking
15PCBA Depaneling
16Post-SMT Quality Inspection
17Final Stage Amp Board Install

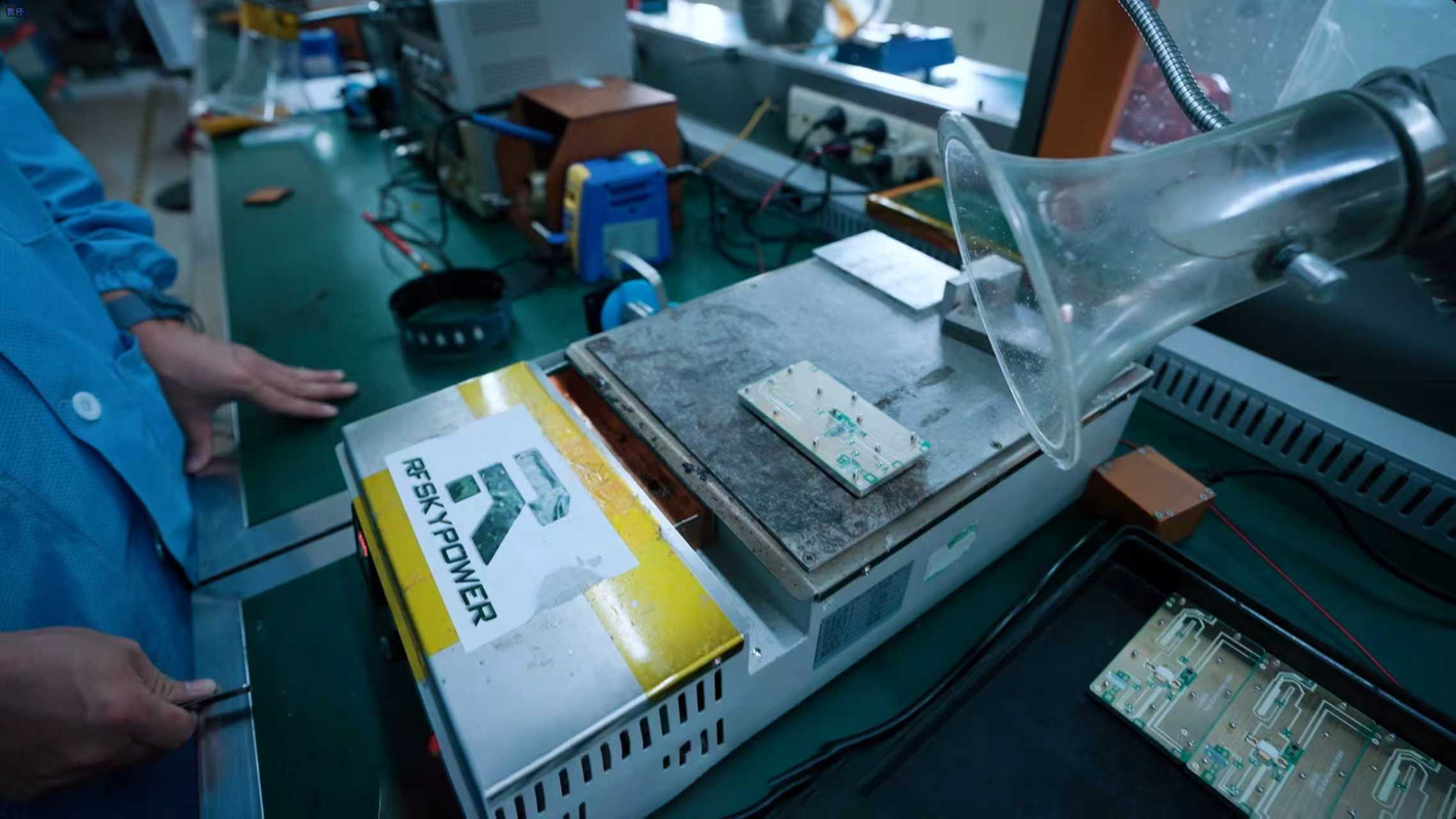

Step 18
Final Stage Sintering Process
Specialized vacuum sintering for high-power modules to ensure maximum thermal dissipation.
Vacuum Brazing
Heat Control
19X-Ray Void & Interface Inspection
20Protective Film Application
21Cable Assembly Processing

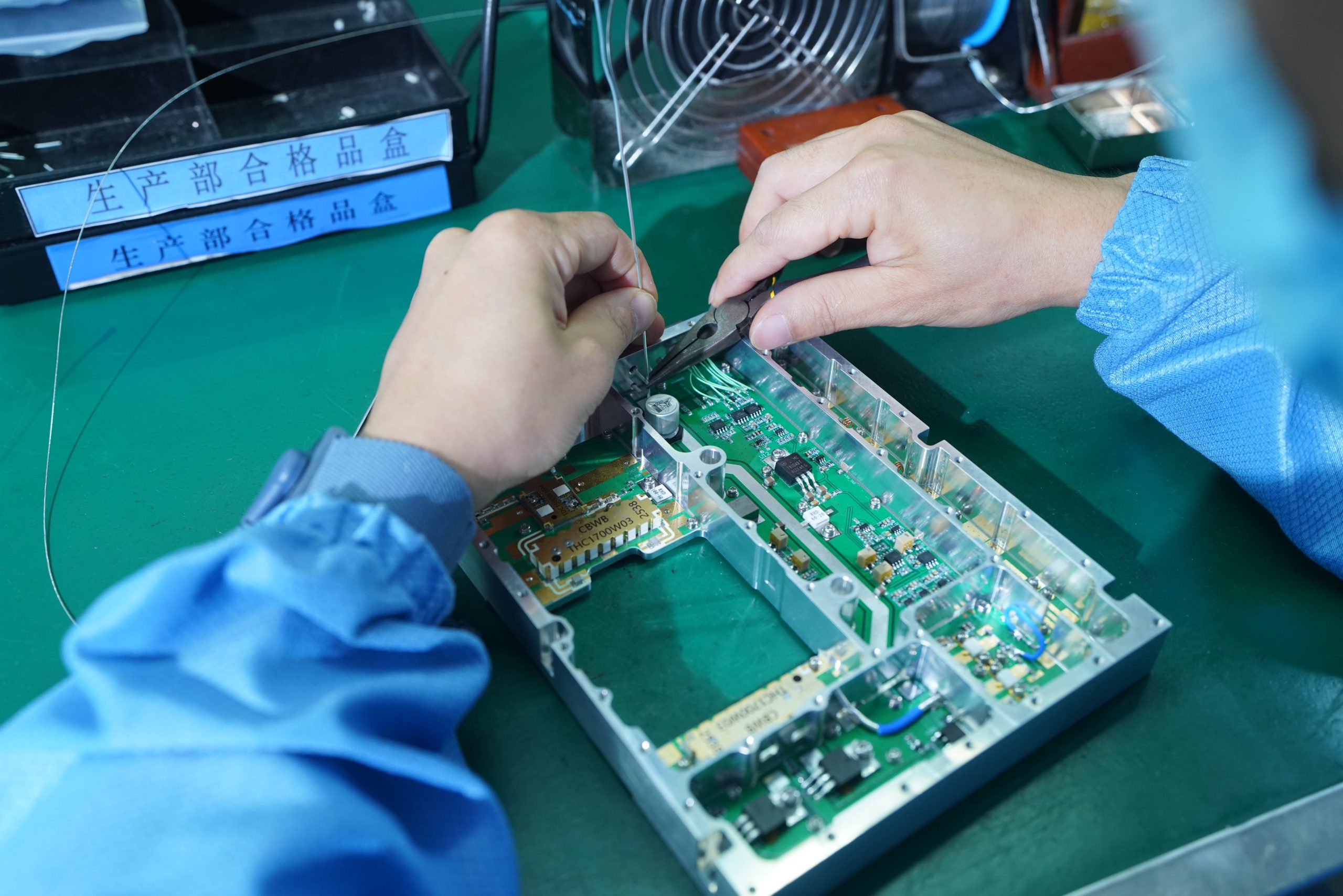

22Internal System Integration
23Module Pre-test Check
24Control & Aux Circuit Soldering
25Chassis Assembly (Thermal/Screw)
26Connector & Power Pin Soldering
27Driver Stage Transistor Install
28Matching Cable Soldering
29Feedback Resistor Soldering
30Inductor/Choke Soldering

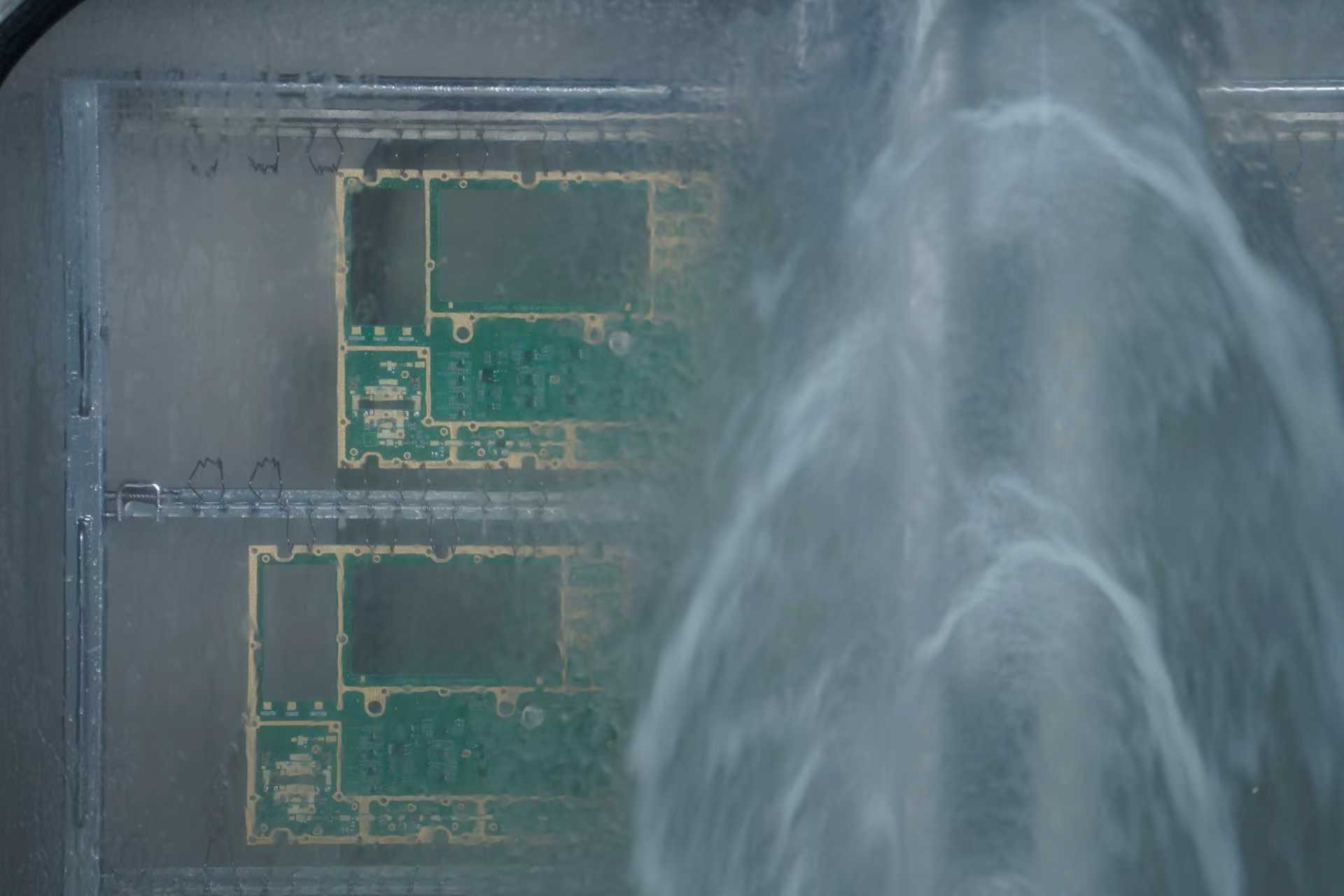

Step 31
Deep Purification Cleaning
Automated ultrasonic removal of flux residue and particulates to prevent RF interference.
Zero Flux
Ultrasonic Clean
32Pre-Test Safety Check
Step 33

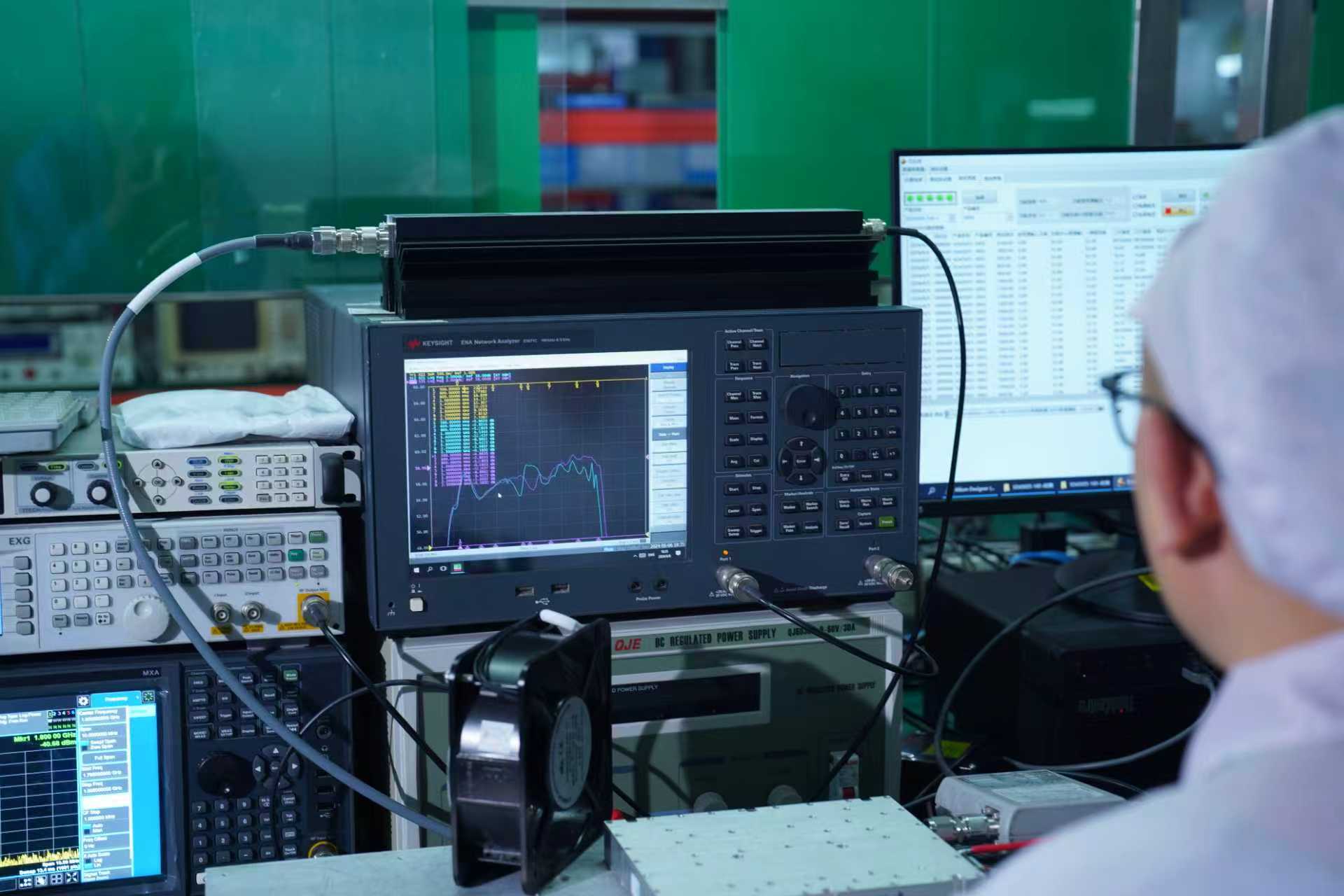

Full-Chain Precision Tuning
Manual and automated alignment of static current, RF response, and safety thresholds.
RF Calibration
Bias Tuning
34Harmonic Suppression Alignment
35Efficiency Optimization Sweep
36Temp Protection Tuning/Test
37VSWR Protection Tuning/Test

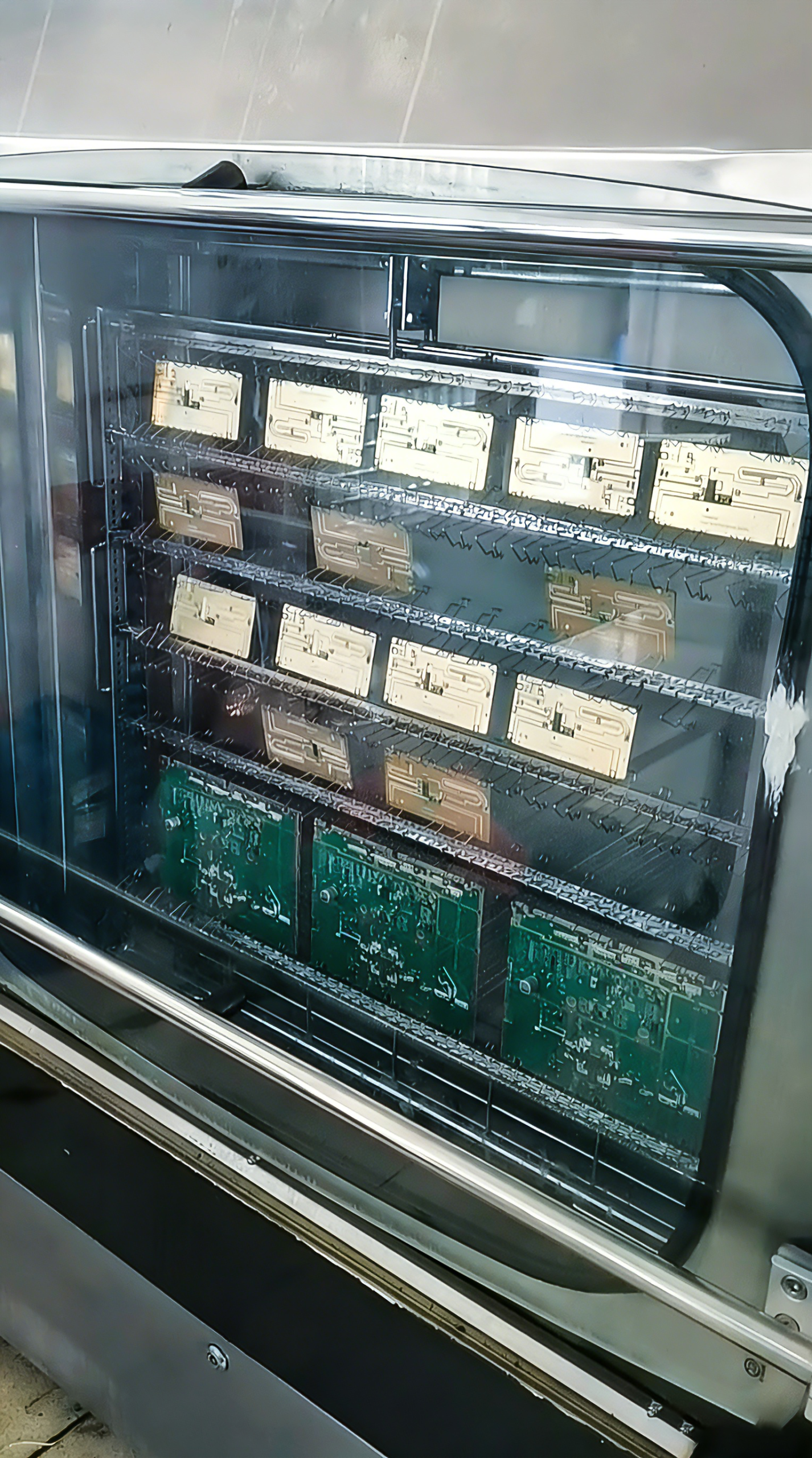

Step 38
Ultimate Surface Treatment
Final preparation of the assembly surface to ensure 100% adhesion of protective coatings.
Coating Ready
Clean Surface
39Conformal Coating Application
40Conformal Coating Curing
Step 41
Extreme Reliability Verification

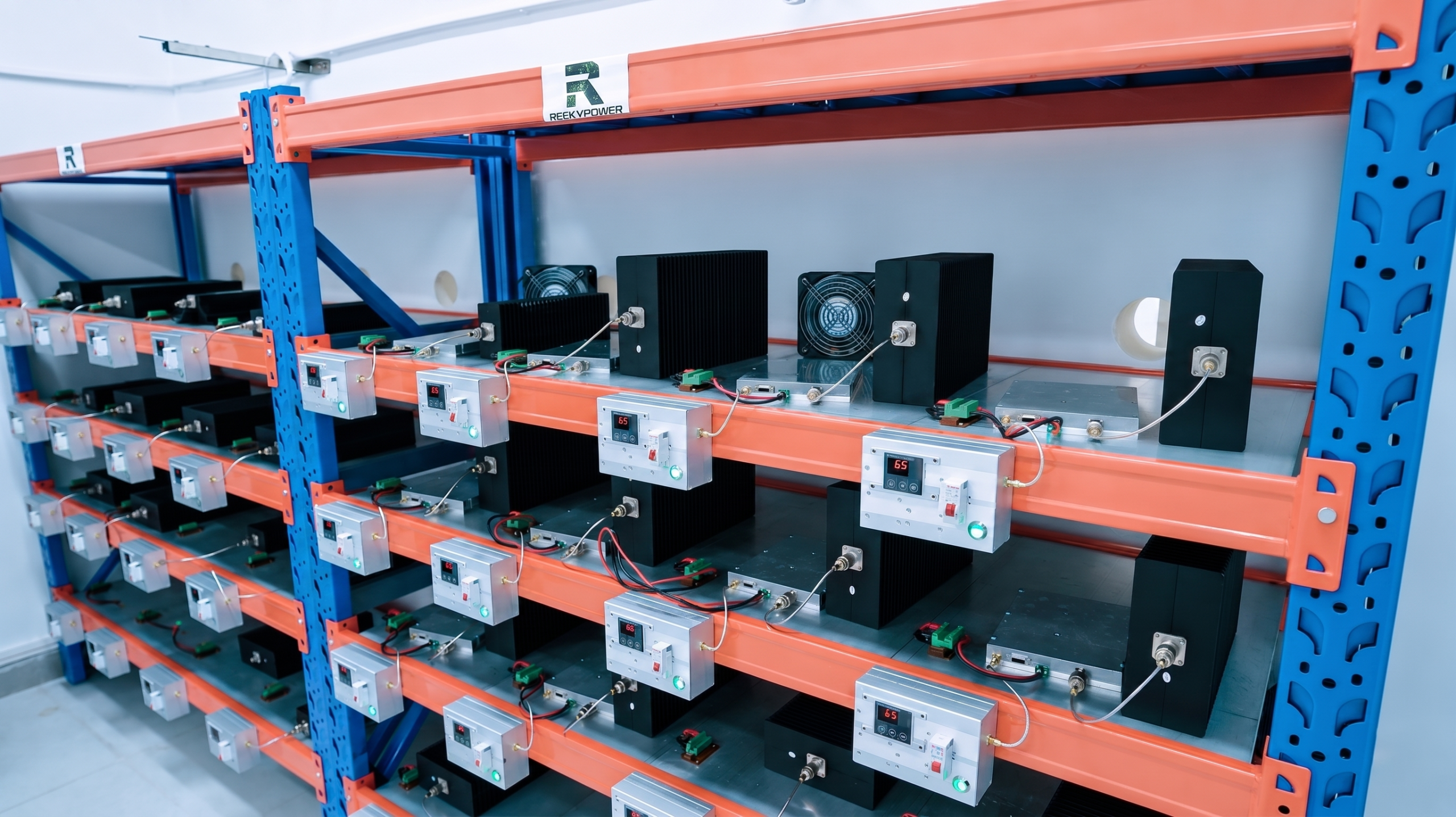

Battlefield simulation: vibration stress, 48h active burn-in, and cyclic thermal shock.
48h Burn-In
Vibration
42Vibration Shock Testing
43High/Low Temp Testing
44Ambient Temp Inspection
45Final QC Approval
46Precision Packaging & Logistics
"While others stop at Step 20, we continue to Step 46."
Project Execution
From Concept to Deployment: 4-Week Sprint
Our streamlined development process delivered field-ready modules in record time without compromising quality or performance.
Week 1
Requirements Lock
- Client technical review sessions
- Frequency allocation mapping
- Interface specification freeze
- Thermal envelope analysis
Week 2

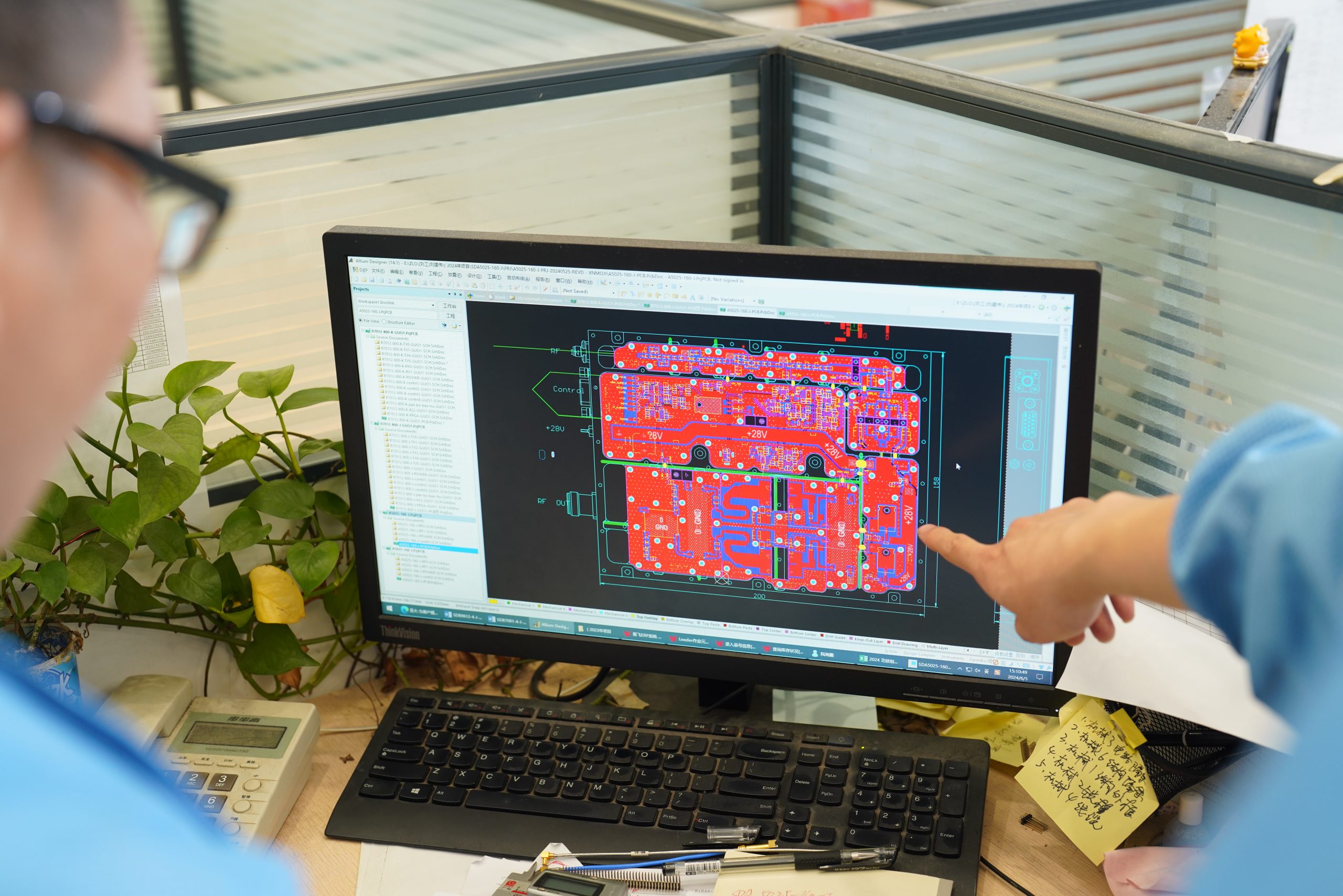

Rapid Prototyping
- Schematic design completion
- PCB layout optimization
- Component procurement (parallel)
- Simulation validation
Week 3
Build & Validate
- Prototype assembly
- RF performance verification
- Environmental stress screening
- Client witness testing
Week 4
Batch & Ship
- Production run (50 units)
- 100% RF burn-in testing
- Documentation package
- Secure logistics delivery
72h
Design Iteration Cycle
100%
First-Pass Yield
0
Schedule Delays
50000+
Units Delivered
Urgent deployment timeline? We specialize in accelerated development cycles.
Calculate Thermal & Size FitGlobal Authority & Operational Testimonials
Leading provider of wideband C-UAS modules, SDR signal sources, and 10KM detection architectures.
ISO 9001:2015
CE Certified
MIL-STD 810G
Infra Protection
Direct Command Center
Direct Engineering Deployment.
Engage directly with our R&D core. We provide full-stack RF synergy for mission-critical infrastructure, ensuring your signal superiority from initial prototype to global field deployment.
