Case Study: Operation NIGHTFALL | Middle East
Securing 3KM Airspace Against Non-Standard FPV Swarms
Deployed 50 sets of Dual-PHY SDR integration modules within 4 weeks, achieving 24/7 full-spectrum coverage without operational downtime.
100% Interception Rate
Achieved zero missed targets against non-standard FPV protocols, ensuring absolute airspace control.
Zero Thermal Lag
Sustained 100% continuous wave thrust without thermal downclocking in extreme 50°C+ heat.
72H API Integration
Completed full system integration via standard AT command sets within just 72 hours.
Tactical Context
The "Hell Mode" Deployment Environment
Understanding the hostile operational conditions that pushed legacy hardware to absolute failure before our intervention.
Extreme 50°C+ Heat
Sustained ambient temperatures exceeding 50°C combined with severe abrasive sandstorms. Continuous exposure mandates strict thermal envelope management.
Stealth Frequency Hopping
Hostile drones utilized non-standard ELRS and TBS Crossfire protocols. Traditional sweepers failed to lock onto these unpredictable frequency hops.
High-Density Swarms
Simultaneous multi-vector incursions engineered to overload standard processing bandwidths, exposing fatal queuing flaws in conventional signal defense.
Why did previous systems collapse here?
Initialize Failure Analysis
Failure Analysis
The Legacy Hardware Gap
A post-mortem of standard market hardware deployed under identical combat conditions.
Single-Channel Paralysis
Legacy RF systems utilizing single-thread processing architecture experienced immediate buffer overflow when facing multi-frequency FPV swarms. The inability to parallel-process targets resulted in complete system paralysis.
Thermal Collapse
Standard modules forced thermal throttling within 15 mins of continuous operation at 50°C, slashing output power.
VSWR Burnout
Antenna damage led to massive power reflection. Lacking underlying hardware-level protection, motherboards were incinerated.
How do we bypass these hardware limitations?
Explore Our Factory Solution
Project Execution
Direct-From-Factory: 4-Week Sprint
Mission-critical delivery powered by our in-house R&D and manufacturing supremacy. From crisis to absolute control.
Week 1
Requirement Lockdown
Direct engineer-to-engineer mapping of the 300MHz-2700MHz frequency spectrum and strict thermal envelope modeling.
Week 2
Rapid Prototyping
Accelerated PCB layout optimization and advanced RF simulation validation conducted natively in our factory.
Week 3
Build & Validate
Rigorous environmental stress screening and true CW power output validation inside our temperature chambers.
Week 4
Mass Deployment
Completion of 100% full-load burn-in testing on 50 initial units, packed and shipped via secure logistics.
72H
Design Iteration
100%
In-House Production
0
Schedule Delays
Need to accelerate your deployment timeline?
View Integration Architecture
Integration Logic
Impenetrable Architecture Integration
Eradicating hardware compatibility nightmares for integrators. Built for plug-and-play lethality.
1
Core GaN Selection
Deployed specialized 100W/200W GaN power amplification modules specifically engineered to output relentless continuous wave (CW) power across targeted defense bands.
// Hardware Spec
Amp_Type: GaN_Solid_State
Duty_Cycle: 100%
Amp_Type: GaN_Solid_State
Duty_Cycle: 100%
2
Unified 28V DC Input
Engineered to accept a wide 24V-32V range (nominal 28V DC), completely eliminating the need for bulky, failure-prone external DC-DC converters in field operations.
// Power Delivery
Input_Nominal: 28V
Conversion_Loss: 0%
Input_Nominal: 28V
Conversion_Loss: 0%
3
Standard AT Command Set
Software integration time was crushed from months to a mere 3 days. Full control is handed over via universally recognized AT commands over standard serial interfaces.
> System Initialize
AT+FREQ=900,2400,5800
AT+BW=100M
OK
AT+FREQ=900,2400,5800
AT+BW=100M
OK
Want to check the specifications of the stock available?
Review specific module datasheets
Precision Hardware Foundation
Tank-Grade Physical Structure
Relying on in-house manufacturing to conquer extreme thermal environments.
Examine our manufacturing capabilities
Contact Production Team
SDR Intelligence in Action
Code Beats Frequency Hopping
Fighting code with code. The SDR architecture natively parses and precisely suppresses mainstream protocols.
> usb_update --firmware
Real-Time Protocol Surgery
Instantly neutralize new stealth hopping threats without changing hardware. Simply import the latest .cs16 interference code file via USB to evolve the system instantly.
> execute ./jam_o3.sh
Mainstream Protocol Parsing
Natively dissects and suppresses DJI O3/O4/Lightbridge, full-band ELRS, and TBS Crossfire. Shifting from blind analog noise to surgical digital precision.
> calc_radius --increase 30%
30% Radius Amplification
Perfect frequency and timing alignment ensures ultimate energy utilization. SDR achieves a 30% jump in interception distance using the exact same power output.
Looking to upgrade your interference engine?
View SDR Specifications
Multi-Target Processing Evidence
Hardware-Level Parallelism
Completely abandoning single-channel polling. The Dual-PHY architecture ensures interception radius doesn't drop to zero during multi-band swarm penetration.
Native Dual-PHY Architecture
Allows two independent RF channels to compute in complete isolation or under highly synchronized control, completely uprooting the fatal "queueing" mechanism.
200MHz Ultra-Wideband Real-Time Response
A single channel provides an ample 100MHz instantaneous bandwidth. Combined, the dual channels instantly unleash 200MHz of massive synthetic real-time response capability.
Zero Blind Spots in Saturation Attacks
Steadily locks on and executes synchronized suppression even when facing multi-target drone threats across extremely wide frequency bands simultaneously.
Want to integrate this processing power?
View SDR Specifications
True CW Power & Thermal Stability
Exposing "Peak Power" Lies
Dismantling the thermal collapse myth. We provide pure, continuous wave output backed by authentic laboratory validation data.
Continuous Thrust Without Degradation
- Technical Standard Utilizing 3rd Generation GaN technology, ensuring a 100% duty cycle to provide pure, continuous CW thrust.
- Aging Validation Completed strict 12-hour 50dBm full-load aging validation utilizing IT6502D programmable DC power supplies.
- Comparative Advantage After 12 hours of continuous operation, the Psat output remains highly consistent with the 1st hour, absolutely refusing "thermal collapse" or power degradation.
Need concrete testing data?
See Environmental Resilience
Environmental Resilience & Self-Healing
Indestructible Field Survival
From extreme temperatures to sudden VSWR spikes, the hardware protects itself and ensures mission continuity.
System Health Optimal

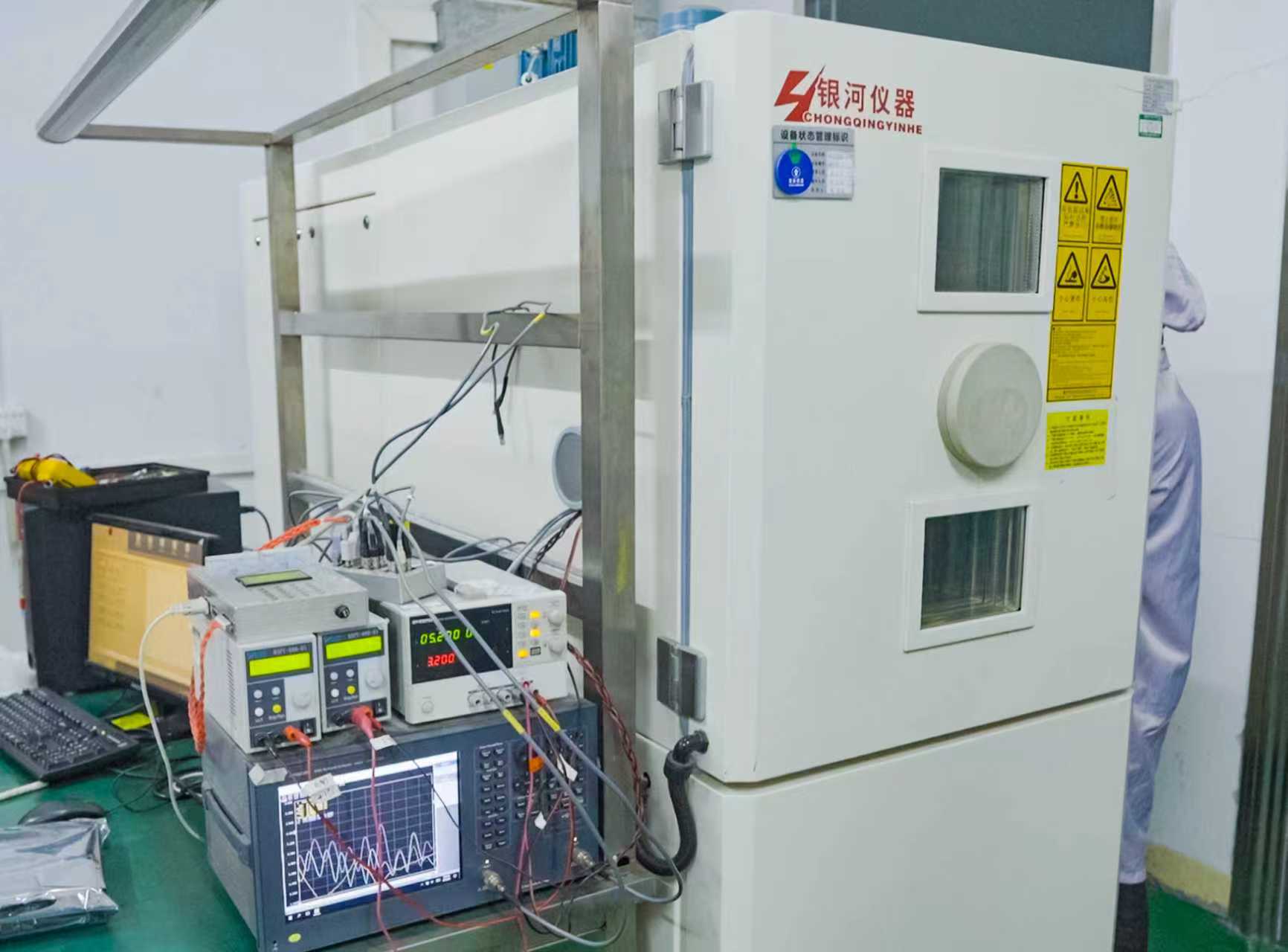

Extreme Environmental Operations
Survives -55°C to +85°C storage conditions and operates flawlessly between -40°C and +60°C. Withstands 15Hz-2000Hz 3-axis continuous vibration for 2 hours without structural degradation.
Active Protection Triggered

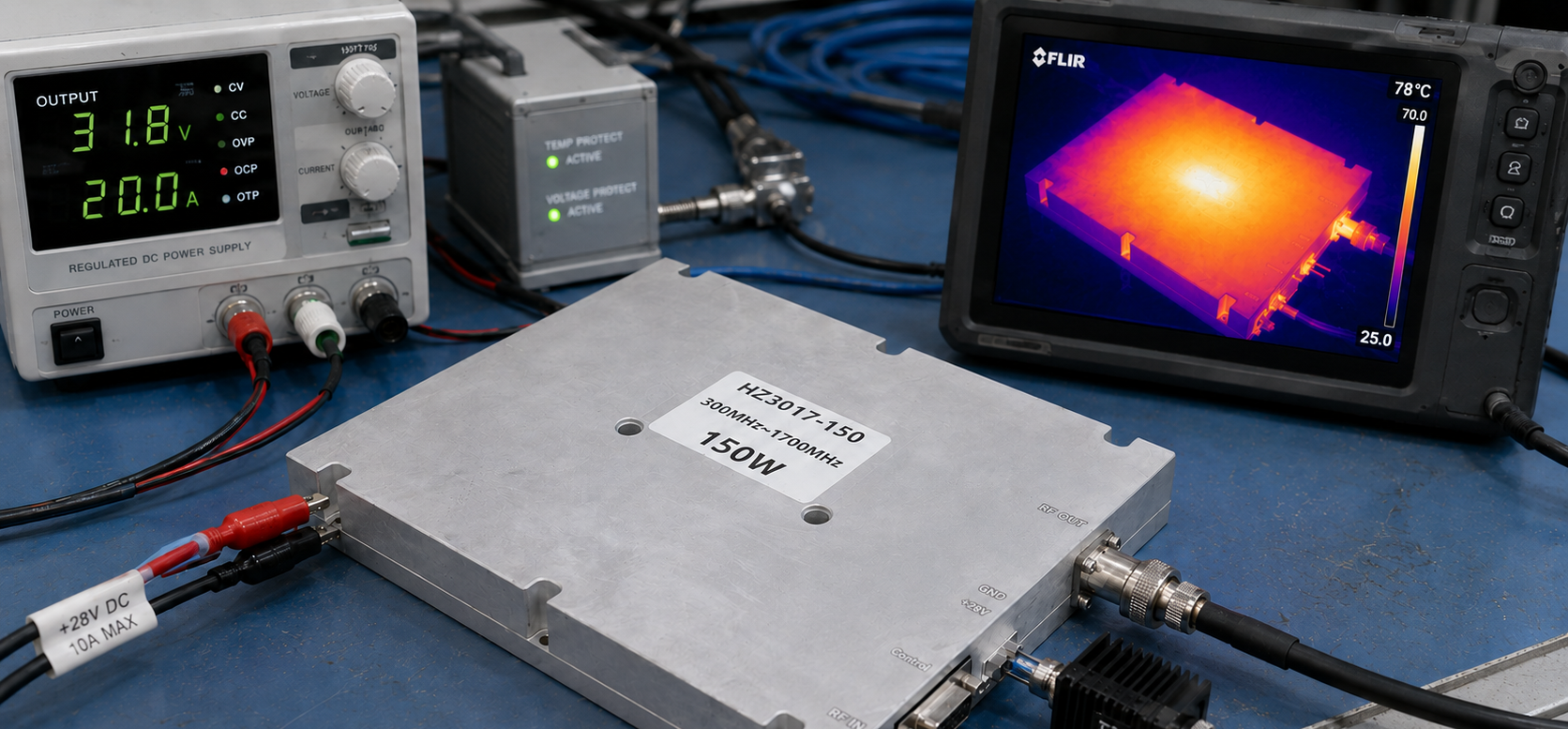

VSWR & Thermal Self-Healing
When antenna damage causes power reflection, the built-in VSWR protection logic shuts down the board in milliseconds to prevent burnout. The system achieves hardware-level self-healing and restarts automatically once conditions normalize.
Do not compromise on system reliability.
View One-to-One Reports
Absolute Transparency
One Report, One Unit:
One Report, One Unit:
Rejecting "Blind Boxes"
We use real, objective instrument data to clear all your concerns before project integration. Every module's performance is strictly bound to its serial number.
Every delivered module comes with an independent, measured performance report matching its S/N.
Complete coverage of full-band gain curves, VSWR sweeps, and crucial thermal stability data.
100% Guaranteed consistency with the specification sheet. No inflated parameters.
100%
Interception Rate
Zero missed targets against non-standard stealth hopping FPV swarms.
60%
Faster Integration
Achieved via standard AT command sets and unified 28V power architecture.
0
Schedule Delays
Maintained a flawless 4-week extreme delivery timeline from R&D to shipment.
50+
Field-Ready Units
Initial batch successfully deployed to secure sensitive infrastructure.
Peer-to-Peer Testimonial
Engineers Trust Engineers
Hear directly from the Chief Integration Engineers who deployed our architecture in the field.
The standard AT command set was a lifesaver. We cut our software integration time from what usually takes months down to a single weekend. Pure plug-and-play lethality.
Defense Contractor, Project Nightfall
I've seen many modules melt down at 50°C. RF SKYPOWER's True CW output actually held its ground during our 12-hour stress test without any thermal throttling. Incredible physical build.
National Security Tech Dept
The Dual-PHY SDR natively parsing those jumping ELRS signals solved our biggest blind spot. We didn't have to redesign the system; we just uploaded their .cs16 protocol file.
Tactical Defense Systems
Want to talk tech with our RF experts?
Connect with an Engineer
Initiate Project
Build Your Tactical Architecture
Provide your core parameters below and receive a technical blueprint directly from our RF engineers within 24 hours.
The Vertical Advantage
30+ Years RF Heritage
Source factory with deep technical accumulation.
Precision SMT Manufacturing
0.01mm placement accuracy for signal consistency.
4-Week Rapid Integration
From concept to deployment in a 4-week sprint.
Global Defense Standard
Exported to 100+ countries, meeting integrator specs.
